Lecture 10, Divide

Hopefully you understand decimal division:

                   49  quotient
                ______
  divisor   47 / 2345  dividend
                 188
                 ---
                  465
                  423
                  ---
                   42  remainder


And check division by multiplication:

                49  multiplicand is the quotient above
             x  47  multiplier is the divisor above
              ----
              2303
            +   42  add the remainder above
              ----
              2345  final sum is the dividend above


A smaller case that is used below in binary:

                   12  quotient
                  ___
      divisor  7 / 85  dividend
                   7
                   --
                   15
                   14
                   --
                    1  remainder


Binary divide,  conventional method and non restoring method

  These examples are shown in a form that can be directly
  implemented in a computer architecture.

  The divisor, quotient and remainder are each one word.
  The dividend is two words.
  The equations   dividend = quotient * divisor + remainder
  and             |remainder| < |divisor|
  must be satisfied.
  When a choice is possible, choose the sign of the remainder to
  be the same as the sign of the dividend.

  Save the sign bits of the dividend and divisor, if necessary,
  negate the dividend and divisor to make them positive.
  Fix up the sign bits of the quotient and dividend after dividing.

  Example:  dividend = 85 ,  divisor = 7

  Decimal divide  85 / 7 = quotient 12 , remainder 1


Restoring (conventional) binary divide, twos complement 4-bit numbers

                                1 1 0 0   quotient
                       ________________
             0 1 1 1  / 0 1 0 1 0 1 0 1
                       -0 1 1 1      may subtract by adding twos complement
                        _______          - 0 1 1 1   is   1 0 0 1
   5 - 7 = -2           1 1 1 0
   negative, add 7     +0 1 1 1
   restored             _______
   next bit               1 0 1 0
                         -0 1 1 1
                          _______
   10 - 7 = 3               0 1 1 1
   quotient=1, next bit    -0 1 1 1
                            _______
   7 - 7 = 0                0 0 0 0 0
   quotient=1, next bit      -0 1 1 1
                              _______
   0 - 7 = -7                 1 0 0 1
   negative, add 7           +0 1 1 1
   quotient=0                 _______
   restored, next bit           0 0 0 1
                               -0 1 1 1
                                _______
   1 - 7 = -6                   1 0 1 0
   negative, add 7             +0 1 1 1
   quotient=0                   _______
   restored, finished           0 0 0 1   final remainder
   (8 cycles using adder)


Clock cycles can be saved by not performing the "restored" operation.

  non-restoring binary divide, twos complement 4-bit numbers
  note: 7 = 0 1 1 1     -7 = 1 0 0 1


                                1 1 0 0   quotient
                       ________________
             0 1 1 1  / 0 1 0 1 0 1 0 1
   pre shift             +1 0 0 1         adding twos complement of divisor
                          _______
   10 - 7 = 3             0 0 1 1 1
   quotient=1              +1 0 0 1
   next bit subtract        _______
   7 - 7 = 0                0 0 0 0 0
   quotient=1                +1 0 0 1
   next bit subtract          _______
   0 - 7 = -7                 1 0 0 1 1
   quotient=0                  +0 1 1 1    adding divisor
   next bit add                 _______
   2 + 7 = 9 = -7               1 0 1 0
   quotient=0                  +0 1 1 1
   correction add               _______
   final remainder              0 0 0 1    remainder
   (5 cycles using adder)


Correcting signs:
      dividend  divisor |  quotient  remainder
      ------------------+--------------------
         +        +     |      +        +      +85 / +7 = +12  R +1
         +        -     |      -        +      +85 / -7 = -12  R +1
         -        +     |      -        -      -85 / +7 = -12  R -1
         -        -     |      +        -      -85 / -7 = +12  R -1


Humans, not the computer, keeps track of the binary point.

          Integers             Fractions           (fixed point)

               qqqq.                 .qqqq                 q.qqq
          __________            __________            __________
   ssss. / dddddddd.     .ssss / .dddddddd     ss.ss / ddd.ddddd
               _____                 _____               _______
               rrrr.             .0000rrrr                .0rrrr



               qqqq.                 .qqqq                q.qqq
             * ssss.              *  .ssss          *     ss.ss
           _________              ________            _________
           tttttttt.             .tttttttt            ttt.ttttt
         +     rrrr.          +  .0000rrrr        +      .0rrrr
           _________             _________            _________
           dddddddd.             .dddddddd            ddd.ddddd

  for multiply, counting positions from the right, the binary point
  of the product is at the sum of the positions of the multiplicand
  and multiplier.

  for divide, counting positions from the right, the binary point
  of the quotient is at the difference of the positions of the
  dividend and divisor. The binary point of the remainder is in
  the same position as the binary point of the dividend.

Overflow occurs when the top half of dividend is greater than or
equal to the divisor, thus division by zero is always overflow.


No schematic or VHDL is provided for restoring division because

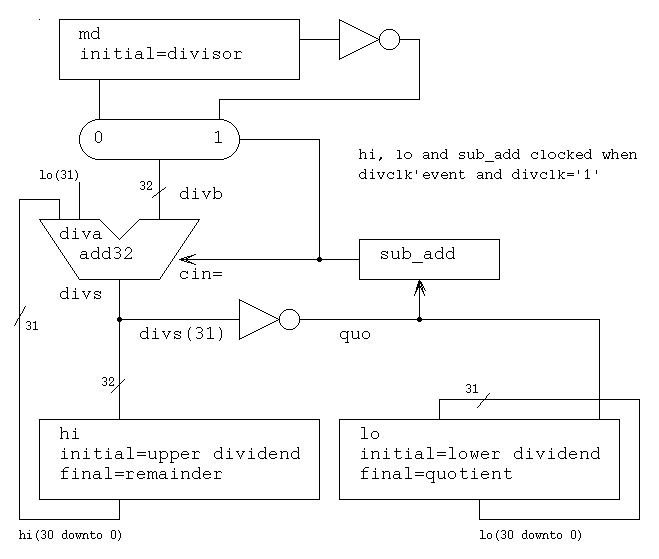

it is never used in practice. The serial non restoring division is:


A possible design for a serial divide, does not include remainder correction:

diva    <= hi(30 downto 0) & lo(31) after 50 ps; -- shift
divb    <= not md when sub_add='1' else md after 50 ps; -- subtract or add
adder:entity WORK.add32 port map(diva, divb, sub_add, divs, cout);
quo     <= not divs(31) after 50 ps; -- quotient bit
hi      <= divs                  when divclk'event and divclk='1';
lo      <= lo(30 downto 0) & quo when divclk'event and divclk='1';
sub_add <= quo                   when divclk'event and divclk='1';



The full VHDL code is div_ser.vhdl
with output div_ser.out

Note that the remainder is not corrected by this circuit.
The  FFFFFFFA should have the divisor 00000007 added to it,
making the remainder  00000001


Now that you understand how binary division works and understand
how multiplication can be speeded up using parallel circuits,

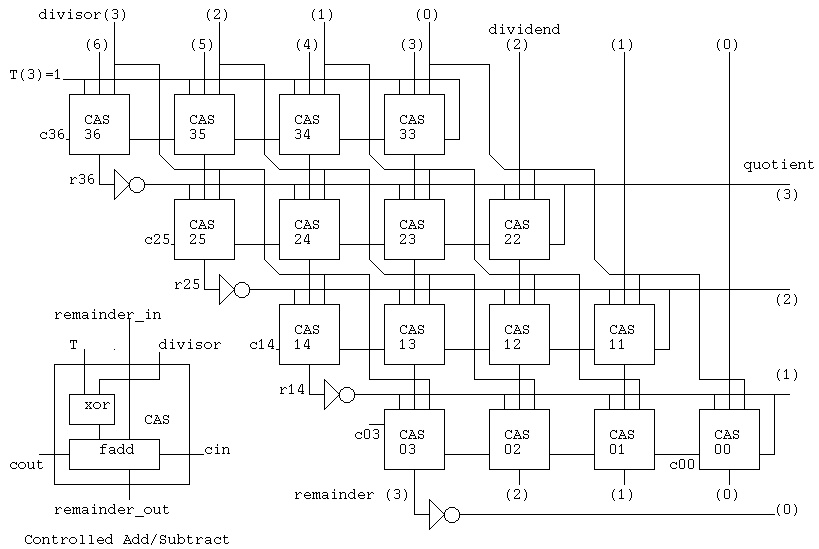

we show a parallel division circuit and its simulation.



divcas4_test.vhdl

divcas4_test.out

Note that the output includes the time.
Observe the first few lines of printout replacing 'U' undefined,
meaning not computed, with zeros or ones. Unfortunately, if VHDL
prints hexadecimal, any state except one is printed as zero.

For  part1  project you are given  divcas16.vhdl
This divides as 32 bit number by a 16 bit number and
produces a 16 bit quotient and 16 bit remainder.

divcas16.vhdl

It would be nice if I could have a 4-bit radix 2 or radix 4 SRT
division schematic here. Parallel circuits that perform division
may use (-2, -1, 0, 1, 2) values for intermediate signals.
Two or more bits of the quotient may be computed at each stage,
based on a table and a few bits of the divisor and partial
remainder.

SRT Divide, click on slide show .pdf
SRT Divide .pdf local

freepatentsonline.com/5272660.html

Software can be copyrighted. Just doing a physical embodiment makes
you the owner of the copyright. Add  Copyright year name  to the
document or computer file. If you want your copyright to stand up
in a court of law, you need to file the copyright. Get the latest
information, at one time there was a $40.00 filing fee and the
copyright was good for 28 years, renewable for 67 more years, for
a total of 95 years.

There is a "fair use" clause that allows personal use of parts
of a copyrighted document.

Software and hardware and processes may be patented. A utility
patent is good for 20 years, a design patent is good for 14 years.
The cost of completing the process of getting a patent is variable.
20 years ago the average cost was $5,000.00 and today the average
cost is about $15,000.00. There are companies that can help you,
do-it-yourself, with advertised cost starting from about $1,500.00.
(There may be additional maintenance fees at 3 1/2 years etc.)
((It may take a year or more to get a patent.))

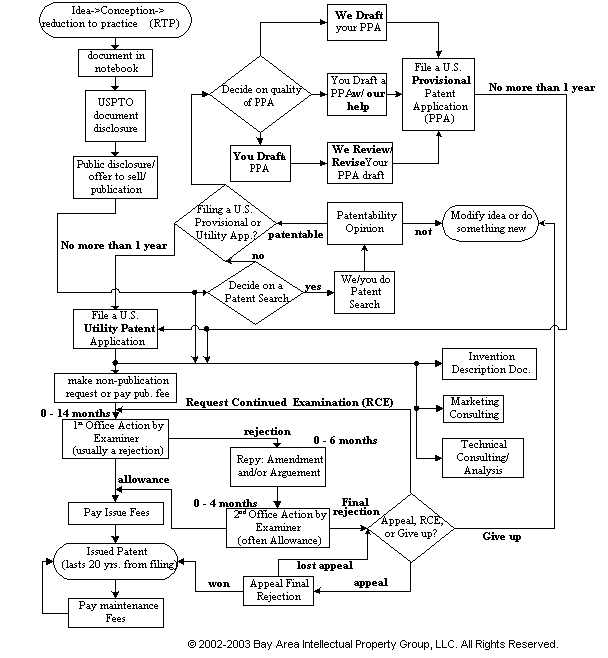

One version of the process to get a patent is:



There is no "fair use" clause on patents.
