Wiring Configurations for A/D Boards

There are two kinds of National Instruments A/D boards in the computers in the Advanced Laboratory. Use the appropriate chart shown below to wire your analog input and output.

KEY:

ACHX - Analog input for channel X
DACX - Analog output on channel X
AGND - Analog input ground
AOGND - Analog output ground

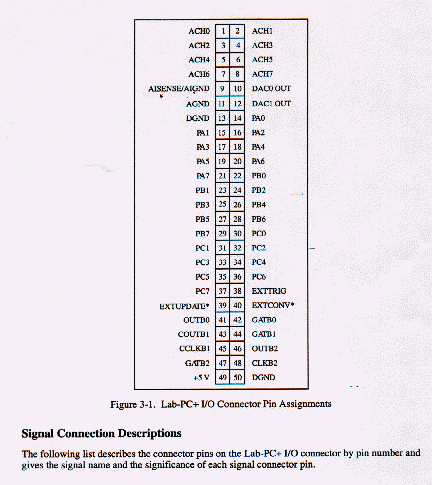

Lab-PC+ I/O Board:

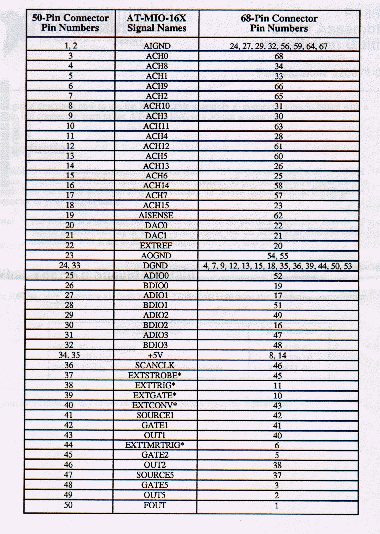

Since the 50-pin board is wired to a 68-pin connector block, you must use the following conversion chart:

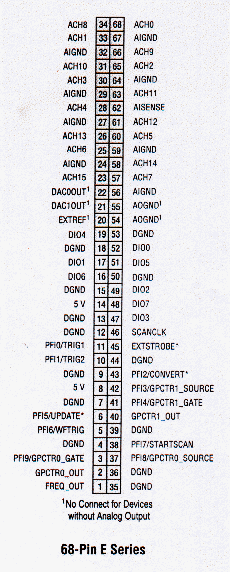

PCI-6024E I/O Board:
